Introduction：

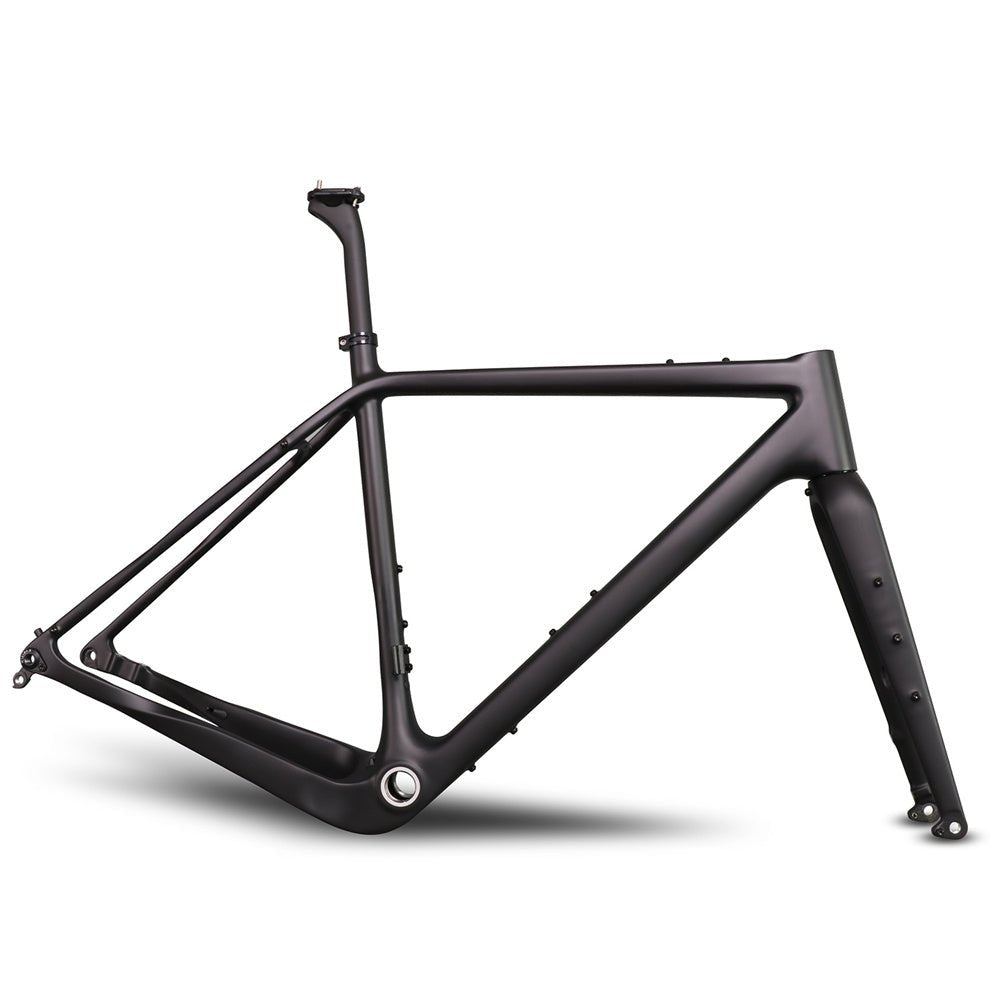

The X-gravel 2 is an upgraded version of the popular GJ01, maintaining the original design and materials with added optimizations. Notable improvements include internal cable routing for reduced drag, enhanced performance, and a sleeker aesthetic. GJ02 seamlessly blends contemporary style with the original design's popularity. Backed by GJ01's proven success in sales and customer validation, GJ02 offers a reliable and versatile choice, catering to both practicality and aesthetic preferences in the market.
Specification
Type: New Gravel frame disc
Frame: X-Gravel 2 (Flat mount)
Seatpost : 400 x 27.2mm
Material: Toray T700 carbon
Weave: UDM/Painting
Weight: Fork-570g (UDM)
Frame painting: 49cm-1260+-20g, 52cm-1290+-20g, 54cm-13200+-20g, 56cm-1350+-20g, 58cm-1380+-20g
UD Matt: 49cm-1185+-20g, 52cm-1220+-20g, 54cm-1265+-20g, 56cm-1300+-20g, 58cm-1330+-20g
Headtube: 1-1/2",1-1/2"
BB: BSA
Available size: 52/ 54/ 56/ 58cm
Max tire size: MTB-29er x 1.95inch Road disc-700C x 45mm
Cable plug: Internal Cable Routing
Axle: 100*12mm/142*12mm
Rotor Size: Front-140mm; Rear-140mm
Package included: Frame+fork+seatpost+headset+thru axles+hanger
Features：
Increased Tire Clearance for Enhanced Comfort
The X-gravel 2 features a complete carbon frame incorporating a lowered chainstay, providing generous clearance for tires up to 700x45mm or 27.5*1.75 inches. This design guarantees a lightweight, responsive cycling experience with outstanding control across various terrains
Flexible Mounting Possibilities
Equipped with numerous attachment points for cages, bags, and fenders, the X-gravel 2 is well-prepared for extended tours, bike packing adventures, or your everyday commute, providing unmatched versatility.
Cutting-Edge Gravel-Specific Geometry
Introducing an innovative gravel-specific geometry, the X-gravel 2 features an extended chainstay length and precisely adjusted trail value, enhancing the bike's handling and stability. This design guarantees a seamless ride over uneven terrains, exceptional control during descents, and efficient power transfer for climbing. From the geometric design of this frame, it is evident that it is exceptionally well-suited for long-distance cycling, providing a high level of comfort.
Streamlined Internal Cable Routing and Sealed Axle Design
The sealed thru-axle design not only achieves a sleek appearance for enhanced aerodynamic performance but also maintains a clean, aerodynamic profile. Complemented by internal cable routing, this feature not only elevates the bike's aesthetics but also shields cables from the elements, ensuring smoother operation and reducing maintenance requirements.
BSA bottom bracket
The BSA bottom bracket’s threaded design not only adds to the overall strength of the bike but also simplifies maintenance, allowing for easy installation and removal. Additionally, the BSA standard ensures compatibility with a wide range of cranksets and components, providing flexibility for cyclists when upgrading or replacing parts. The availability of replacement parts for BSA bottom brackets and carbon frames with this design is widespread, facilitating convenient maintenance.
Size Recommendation:
How to build up this model of bike?
Specification
| Type | Gravel Wheelset |
| Materials | Carbon Fiber T700 |
| Size | 700C |
| Rim Width |
700C G24: External:29mm Internal: 24mm
700C G25: External:31.3mm Internal: 25mm
Vortex: External:31.6mm Internal: 27mm
|
| Rim Depth |
700C G24: 40mm depth 700C G25: 50mm depth Vortex: 28.6mm |
| Profile | Clincher Tubeless Ready |
| Hub |
700C G24/700C G25: D21 Vortex: Customized hub |
| Spoke | Sapim CX-Ray |
| Spoke Count | Front: 24 Rear: 24 |
| Spoke Pattern | Front: 2X cross Rear: Drive-Side/Non-Drive: 2X cross
|
| Nipple | Aluminium,CN Brand Color: Black |
| Cassette Compatibility |
Shimano 11.12S/Sram 10.11S Sram XDR |
| Disc Type | Centerlock |
| Weight |
700C G24: Total: 1392g Front: 635g Rear: 757g 700C G25: Total: 1510g Front: 695g Rear: 815g Vortex: Total: 1330+-30g Front: 630g Rear: 700g |
| Assemble Method | Handbuilt |
| Guarantee | 2 years |
| Package Include | 1 set of wheelset 1 set of skewer |
| Packing Size | 81.5cm x 17cm x 65.5cm |
Warranty Policy
Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.
Product Group:
Frame and Rim
Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.
Coverage:
2-year warranty from the date of purchase.
Conditions:
- If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
- If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
- The Warranty program is not transferable and only applies to the initial purchaser.
This warranty does not cover：
- Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
- Products which have been incorrectly installed and/or adjusted.
- Issues brought about by neglect or poor maintenance.
- Surface finish and cosmetic treatments (anodizing, decals, etc.)
- Crash damage.
- Consequential or incidental damages (where applicable)
- Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
- Counterfeit products
- Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service
Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.
The following will void your warranty
- Misuse (Jumping, trick riding, etc.)
- Modification of wheels
- Tire pressure exceeding 140psi
- Improper assembly
- Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
- Use of brake pads not designed for carbon wheels
More details can be known from "Warranty & Return".
