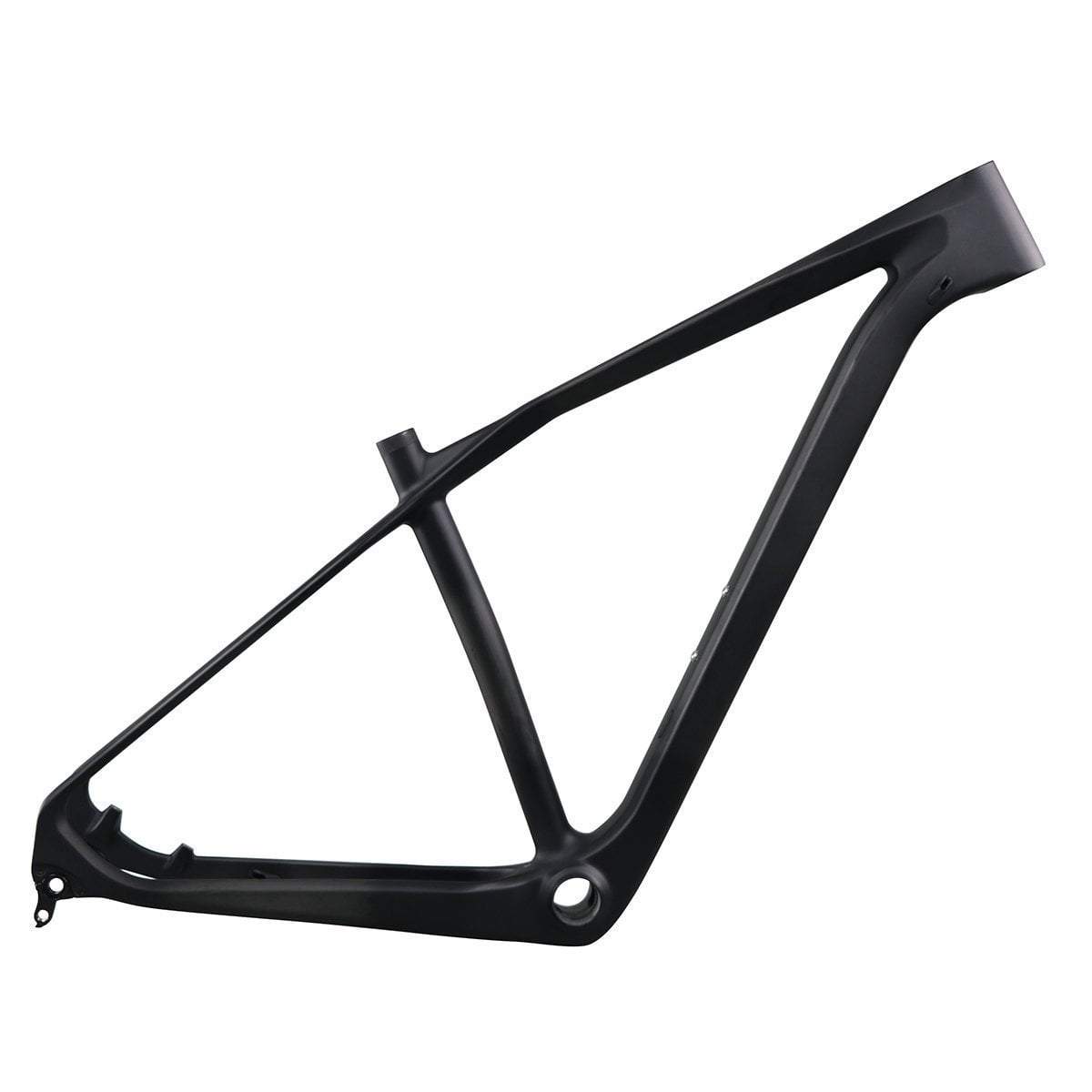

The features of 29er Hardtail MTB Frame M17
- Tapered headtube-reduce cross section area, improve performance, reduce wind resistance and enhance aerodynamic effect
- BB92 buttom bracket, wider and stronger torsional rigidity
- Direct mount front derailleur-get the best quality and reliability
- 12x142mm Rear Spacing
- 2 year warranty for manufacturer defects, lifetime crash replacement program ( discount for new frame )
Fancy cross-country mountain biking? Want a waif-like carbon steed to help you to a step on the podium? But you do not want to spend a crazy amount to make this happen? We have built you your dream frame then. Our M17 carbon fibre XC mountain bike frame is just for you.
We have used aerospace grade carbon fibre to make sure that the ride quality of the M17 frame is out of the world. We also know that even if a frame is comfortable that alone will not win races, so we have worked hard to make sure the frame is light and super stiff where you need it to be stiff. We even made sure that your cables stay hidden through our internal routing.
To create a more substantial bottom bracket area we have used a BB92 bottom bracket shell. This gives our engineers more space to play with and look at the size of our chainstays, and down tube, your pedaling effort will not be flexing ant of these carbon tubes. Our chain stays run all the way to a 142 x 12mm rear thru axle, meaning your wheel will have no room to move it will be held tightly in place.
The downtube mates up with our tapered headtube, you will have no problem finding a fork to fit this XC beast. This frame will then go precisely where you point it, and it will not let you take B-lines you will be A-line through all the courses. Our carbon seat stays, and top tube though are designed to help manage the stiffness from below and cancel out any vibrations, adding a bit of vertical compliance to your ride.
Specification
| Type | Mountain Bike Frame |
| Wheel Size | 29ER |
| Material | T700 carbon fiber |
| Weave | UD |
| Finish | Clear Coating |
| Frame Weight | 1173g(17 inch) |
| Frame Size | 15/17/19/21'' |
| Headset | Top 1-1/8",down 1- 1/2" |
| BB | BB92 |
| Model | M17 |
| Seatpost | 31.6mm |
| Seatpost Clamp | 37 mm |
| Max Tires | 29 x 2.3'' |
Warranty Policy
Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.
Product Group:
Frame and Rim
Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.
Coverage:
2-year warranty from the date of purchase.
Conditions:
- If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
- If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
- The Warranty program is not transferable and only applies to the initial purchaser.
This warranty does not cover：
- Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
- Products which have been incorrectly installed and/or adjusted.
- Issues brought about by neglect or poor maintenance.
- Surface finish and cosmetic treatments (anodizing, decals, etc.)
- Crash damage.
- Consequential or incidental damages (where applicable)
- Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
- Counterfeit products
- Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service
Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.
The following will void your warranty
- Misuse (Jumping, trick riding, etc.)
- Modification of wheels
- Tire pressure exceeding 140psi
- Improper assembly
- Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
- Use of brake pads not designed for carbon wheels
More details can be known from "Warranty & Return".
